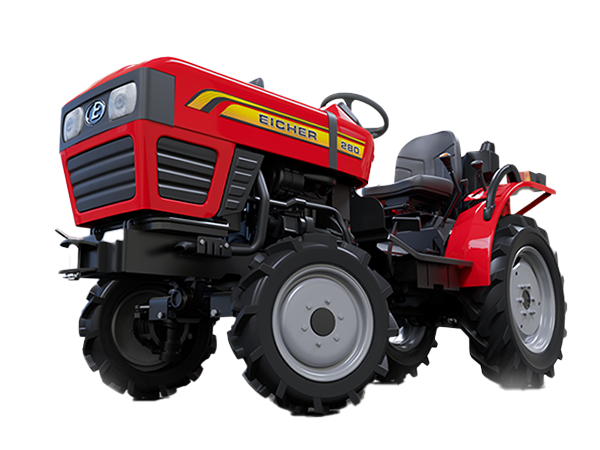

EICHER 280 4WD

Product Specifications

Power (HP range) 19.12 kW (26 hp)
Engine Make/ Type MVS3L2-T3CC10, WATER COOLED
Cylinders 3
Cubic Capacity 1318 cc (1.31L)
Fuel Injection Pump Inline
Clutch Type Single
Transmission Type Side shift
Partial constant mesh
Number of Speeds 9 Forward + 3 Reverse
Tyre Dimensions 12.7 cm x 30.48 cm (5.0 x 12) Front
20.32 cm x 45.72 cm (8 x 18) Rear

Option: 17.78 cm x 30.48 cm (180 / 85D12) Front
21.08 cm x 50.80 cm (8.3 x 20) Rear
Forward speed @ rated RPM 24.89 kmph (with 8.3x20 rear tyres)
PTO Type Live, Six splined shaft, Two-speed PTO
PTO Speed (Standard) 540 RPM @ 2321 ERPM
540 RPM @ 1764 ERPM
PTO - Multispeed & Reverse No
Lifting Capacity (Lower links at horizontal position) 739 kgf
Three-Point Linkage & Controls Draft, position and response control
Links fitted with CAT-II (Combi Ball)
Brake Type Oil immersed brakes
Steering Type Power Steering
Electricals 12 V 65 Ah Battery
Overall Length 2965 mm
Overall Width 1140 mm
Overall Height 1320 mm (At Driver Seat)
Wheelbase 1550 mm
Total Weight 975 kg
Fuel Tank Capacity 23 L
Accessories Drawbar, top link




DISCLAIMER: The information relating to TMTL’s products, product images, specification and availability provided on TMTL's websites, digital and social media platforms are subject to constant revision, upgradation based on its policies and current product-line, and may not reflect the updated information. You are advised to contact corporate@tafe.com, our regional sales representative, or your nearest authorized dealer / distributor in this regard. Products listed on TMTL’s digital platforms may not be available in certain geographies and may be enhanced or discontinued without any prior notice.

TMTL does not verify, endorse or approve any information relating to itself, its products, their price, specification, availability etc. provided by third-party on any platform whatsoever, including websites, aggregator sites, social media platforms, RSS feeds, instant messaging platforms, non-digital platforms - print media, trade journals, publications etc. It is hereby made clear that no information derived from such third-party shall be treated as accurate and TMTL shall not be responsible for the same in any manner whatsoever.
