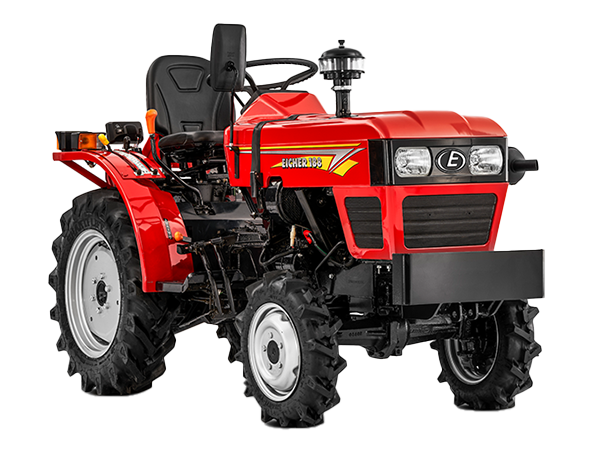

EICHER 188 4WD

Product Specifications

Power (HP range) 13.24 kW (18 hp)
Engine Make/ Type EICHER AIR COOLED
Cylinders 1
Cubic Capacity 825 cc (0.82L)
Fuel Injection Pump Inline
Clutch Type Single
Transmission Type Side shift
Partial constant mesh
Number of Speeds 8 Forward + 2 Reverse
Tyre Dimensions 12.7 cm x 30.48 cm (5.0 x 12) Front
20.32 cm x 45.72 cm (8 x 18) Rear
Forward speed @ rated RPM 21.68 kmph
PTO Type Live, Six splined shaft, Two-speed PTO
PTO Speed (Standard) 540 RPM @ 2117 ERPM
540 RPM @ 1431 ERPM
PTO - Multispeed & Reverse No
Lifting Capacity (Lower links at horizontal position) 700 kgf
Three-Point Linkage & Controls Draft, position and response control
Links fitted with CAT-II (Combi Ball)
Brake Type Oil immersed brakes
Steering Type Mechanical Steering
Electricals 12 V 75 Ah Battery
Overall Length 2650 mm
Overall Width 970 mm
Overall Height 1315 mm
Wheelbase 1420 mm
Total Weight 840 kg
Fuel Tank Capacity 28 L
Accessories Tipping trailer kit, drawbar, top link
