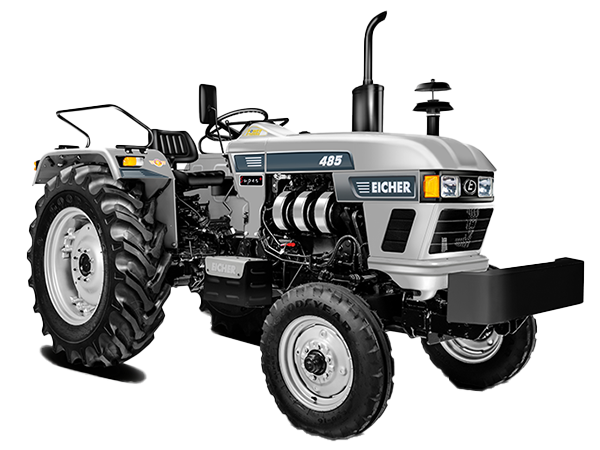

EICHER 485 Super Plus

Product Specifications

Power Range (HP Range) 36.04 kW (49 hp)
Engine Make / Type EICHER AIR COOLED
Cylinders 3
Cubic Capacity 2945 cc (2.95L)
Fuel Injection Pump Inline
Clutch Type Single / Dual
Transmission Type Center shift
Option: Side shift
Partial constant mesh
Number of Speeds 8 Forward + 2 Reverse
Tyre Dimensions 15.24 cm x 40.64 cm (6.0 x 16) Front
37.85 cm x 71.12 cm (14.9 x 28) Rear
Option: 15.24 cm x 40.64 cm (6.0 x 16) Front
34.54 cm x 71.12 cm (13.6 x 28) Rear
Forward speed @ rated RPM 32.31 kmph (with 14.9x28 rear tyres)
PTO Type Live, Six splined shaft
PTO Speed (Standard) 540 RPM @ 1944 ERPM
PTO (Multi Speed & Reverse) Optional
Lifting Capacity (Lower links at horizontal position) 1650 kgf
Three Point Linkage & Controls Draft, position and response control
Links fitted with CAT-II (Combi Ball)
Brake Type Sealed Multi disc oil immersed brakes
Steering Type Mechanical Steering
Optional: Power Steering
Electricals 12 V 75 Ah Battery
Overall Length 3580 mm
Overall Width 1795 mm
Overall Height 2287 mm
Wheelbase 2010 mm
Total Weight 2070 kg
Fuel Tank Capacity 45 L
Optional Features Auxiliary pump with spool valve
Accessories Company fitted drawbar, top link
